Modular Wheelchair Ramps
Modular wheelchair ramps bolt together from pre-built aluminum sections, platforms, and handrails, so you get the strength of a permanent ramp without pouring concrete or building with wood. Our top pick is the RampIt USA Independence: an all-aluminum ramp built in Coldwater, Michigan that stands on adjustable legs with no concrete, in 2' to 20' lengths with an optional 5' x 5' landing. We also carry modular systems from PVI and American Access, or let our ramp experts design a custom layout for free for turns, switchbacks, and longer runs.
- No concrete or digging
- Handrails included
- Built to ADA guidelines
- Free shipping
- Free custom design
Compare our modular ramp systems
Every system below is all-aluminum, rust-free, and installs without concrete. Here's how they differ so you can pick the right one for your entrance.
| RampIt USA Independence | PVI XP Modular | American Access Big Lug | |
|---|---|---|---|
| Best for | Home entrances, with an optional top landing | Homes and businesses, complex layouts and long runs | Short rises at a step, curb, or porch |
| Lengths online | 2' to 20' | 4' to 15' (up to 40' by custom design) | 3' to 6' |
| Widths | 36" or 48" | 36", 42", or 48" | 42" (34" usable) |
| Capacity | 1,000 lb rated load | 100 lb per sq. ft. | 800 lb |
| Platforms | 5' x 5' top landing online; more by custom design | 4'x4' to 6'x6', plus 30°–180° turn platforms (shop platforms) | Not offered |
| Warranty | Lifetime on aluminum | Lifetime | 3 years |
| Made in | Coldwater, Michigan | USA | Jackson, Tennessee |
What is a modular wheelchair ramp?
A modular ramp is a ramp system built from prefabricated aluminum sections that bolt together on site. Instead of framing a custom wood ramp or pouring concrete, you combine ramp sections, platforms, and handrails into a straight, L-shaped, or switchback layout that fits your entrance. Because nothing is permanent, a modular ramp can be extended, reconfigured, or moved later, and aluminum won't rot, rust, or need painting. See how it all comes together on the RampIt USA Independence.
Ramp sections
The sloped walking surface, with a slip-resistant aluminum tread and raised edge protection to keep wheels on the ramp.
Platforms & landings
Flat sections for resting, turning, and opening the door. A 5' x 5' landing is the standard size at most home entrances.
Handrails
Continuous handrails on both sides give steady support for wheelchair, walker, and cane users. Handrails come included on our modular systems unless you request otherwise.
Legs & connectors
Adjustable legs level the ramp on uneven ground, and all brackets and hardware to join sections are included.
How to choose the right modular ramp length
- Measure your total rise. Measure straight down from the top of the door threshold or top step to the ground where the ramp will end.
- Plan 1 foot of ramp for every inch of rise. That's the ADA-recommended 1:12 slope for independent wheelchair users. A 24" rise needs about 24 feet of ramp.
- Add landings where you need them. Plan a level landing at the door, at every turn, and at least every 30 feet of ramp.
- Pick your layout. Straight runs are simplest. L-shaped and switchback layouts fit longer ramps into tight yards.
Use our ramp length calculator, read how to measure for your modular ramp, or call a ramp expert at 888-307-1839. Once you know your length, choose it on the RampIt USA Independence (2' to 20', with an optional 5' x 5' landing).
ADA requirements for modular ramps
Whether your ramp is for a home or a business, these ADA guidelines are the standard for a safe, comfortable ramp:
- Slope: 1:12 maximum, or 1 inch of rise per foot of ramp
- Rise per run: 30 inches maximum before a level landing
- Width: at least 36 inches of clear width between handrails
- Landings: at least 60" x 60" at the top, bottom, and any change of direction
- Handrails: on both sides when the rise is more than 6 inches, 34" to 38" high
- Edge protection: curbs or rails along the sides to keep wheels from slipping off
Learn more in our guide to ADA wheelchair ramp requirements. Local building codes can vary, so check with your city for commercial projects.
Modular vs. other wheelchair ramps
Modular aluminum
Best for main entrances and rises over a few inches. Strong, low-maintenance, and expandable, with no construction. Shop the Independence.
Wood or concrete
Built on site, often needing permits, contractors, and ongoing maintenance. Hard to change or remove later.
Portable & threshold
Great for a single step, a doorway lip, or travel. Portable ramps and threshold ramps handle smaller rises.
Modular wheelchair ramp questions
Do modular wheelchair ramps need concrete footings?
No. The modular ramps we carry stand on adjustable aluminum legs, so there's no digging, pouring, or permanent change to your property. The RampIt USA Independence, for example, levels on adjustable legs with wide composite footpads. Some installations add anchors for extra stability.
Are modular ramps ADA compliant?
Our modular ramp systems are designed to meet ADA guidelines when they're sized at a 1:12 slope with the proper landings, width, and handrails. For commercial projects, confirm your layout with your local building department.
How long of a modular ramp do I need?
Plan about 1 foot of ramp for every inch of rise. A 12" rise needs a 12' ramp, and a 30" rise needs about 30' of ramp plus landings. Our ramp calculator does the math for you.
Can I install a modular ramp myself?
Yes. Most modular ramps arrive as pre-built sections that bolt together with common hand tools, and many homeowners install them with a helper. The RampIt USA Independence ships as a ready-to-install kit.
Can a modular ramp turn or switch back?

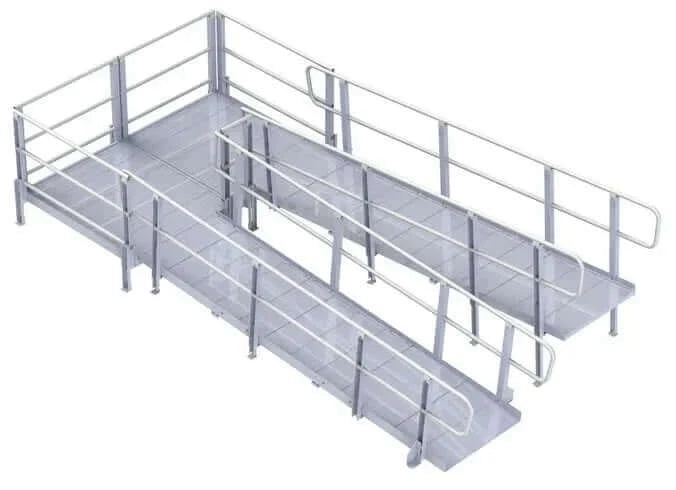

Yes. With turn platforms you can build L-shaped and switchback (U-shaped) layouts to fit longer ramps into smaller spaces. Request a free custom design and we'll lay it out for you.
Can I add on to my modular ramp later?
Yes. That's one of the biggest advantages of a modular system. You can add ramp sections or platforms, change the layout, or take the ramp with you if you move.
What is the best material for a modular wheelchair ramp?
Aluminum. It's lightweight, strong, and won't rust, rot, or need painting, which is why every modular ramp we carry is all-aluminum.
